LM75ADP Temperature Sensor

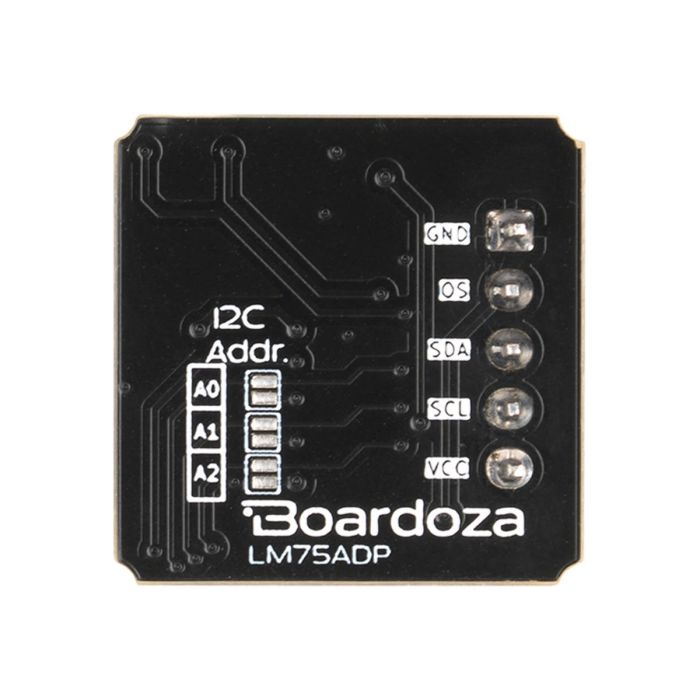

Boardoza LM75ADP Digital Temperature Sensor Breakout Board

Wide Temperature Range: Operates across -55°C to +125°C for industrial and embedded use.
High Measurement Resolution: Outputs data in 0.125°C increments for accurate sensing.
Standard I2C Interface: Communicates seamlessly with microcontrollers and processors over I2C (default address 0x48).
Programmable Thresholds: Configurable high/low alarm limits with interrupt via OS pin.
Thermal Watchdog: Enables autonomous system protection during overheating events.
Compact & Low-Power: Minimal footprint and power-efficient for mobile and battery-powered projects.

Model: NXP LM75ADP
Input Voltage: 5V
Functions: Digital temperature sensor
Measurement Range: -55°C to +125°C
Operating Temperature: -55°C ~ +125°C
Interface: I2C (default address: 0x48)
Output Resolution: 0.125°C per bit
Board Dimensions: 20mm x 20mm
