AMS1117-3.3V Voltage Regulator Module

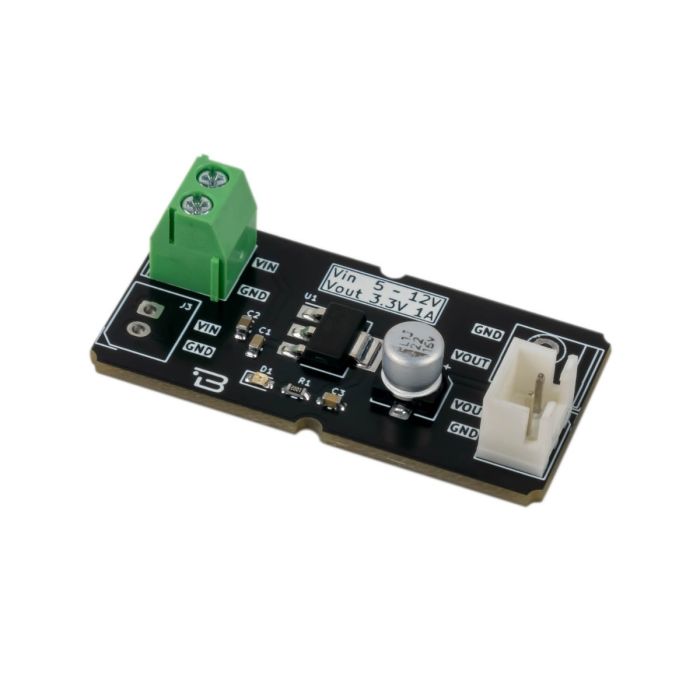

Boardoza AMS1117-3V3 Voltage Regulator Breakout Board

Fixed 3.3V Output: Provides a stable 3.3V regulated voltage for embedded systems.
1A Output Current: Can deliver up to 1A, making it suitable for many low-power applications.
Low Dropout Voltage: Requires only 1.2V difference between input and output at maximum load for higher efficiency.
Built-in Protection Features: Overcurrent Protection
Thermal Overload Protection
Safe Area Protection
Low Quiescent Current: Draws only ~5mA, making it battery-friendly.
Minimal Output Noise: Designed to reduce voltage ripple, with the option to add additional filtering capacitors for noise-sensitive applications.

Input Voltage: 5V ~ 12V
Functions: Low Dropout Voltage Regulator
Output Voltage: 3.3V
Output Current: 1A
Operating Junction Temperature: -40°C to +125°C
Board Dimensions: 20mm x 40mm
