ADXL345 3-Axis Accelerometer Sensor

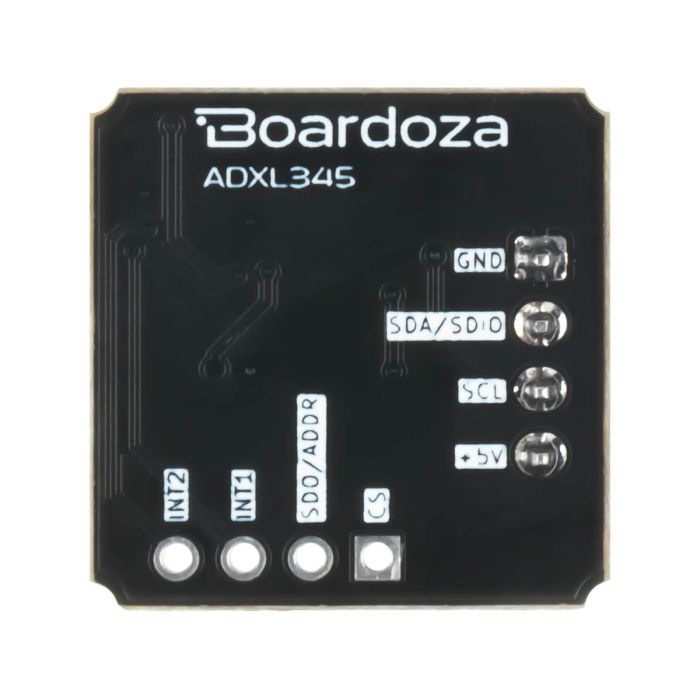

Boardoza ADXL345 Accelerometer Sensor Breakout Board

High Resolution: Up to 13-bit resolution allows for measurement of inclination changes less than 1.0°.
Triple Axis Measurement: Measures acceleration on X, Y, and Z axes.
Wide Range: It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.
Adjustable Sensitivity: It has selectable measurement ranges of ±2g, ±4g, ±8g, and ±16g.
Ultra Low Power Consumption: Suitable for battery-powered devices.

Power Input Type: Molex 2 pin 2.50 header
Input Voltage: 3.3V or 5V
Functions: Digital accelerometer
Measurement Range: ±2g, ±4g, ±8g, and ±16g
Resolution: 10-bit (default), 13-bit (high resolution mode)
Interface: I2C, SPI (3 and 4 wire)
Operating Temperature: -40°C ~ +85°C
Board Dimensions: 20mm x 20mm
